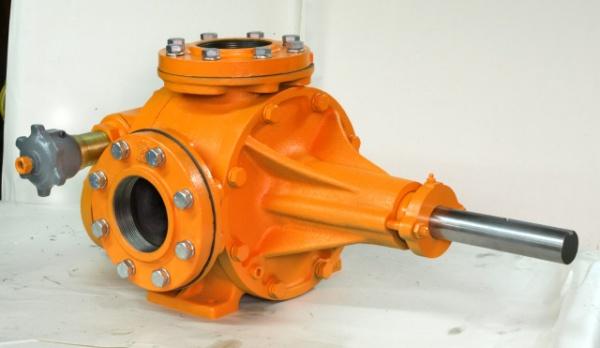

240 GPM Variable Volume Control Pump – Tri-Rotor Model 220TV
Click image to enlarge
Tri-Rotor Pump model 220TV, which shares common components with model 200AV, is in the largest family of Tri-Rotor Variable Volume Control Head pumps that provide variable flow rates. This heavy duty pump, with its unique design, allows the end user to adjust the flow rate of the pump from 0% to 100% through either the Manual Flow Control (MFC) or the more precise metering Vernier Flow Control (VFC) without changing motor speed. The pump serves a wide range of industrial markets and applications. Examples of the 220TV model’s diverse applications include pumping ink paste and plastic.
The pump is designed with top suction and side discharge flanged ports and is available in both clockwise (CW) and counterclockwise (CCW) rotations for pump installation flexibility. Materials of construction for the 220TV model include Iron Fitted, All Iron, Bronze Fitted, or All Bronze configurations. Two drain plugs, located on the shaft housing, are provided with every pump.
The pump is designed with top suction and side discharge flanged ports and is available in both clockwise (CW) and counterclockwise (CCW) rotations for pump installation flexibility. Materials of construction for the 220TV model include Iron Fitted, All Iron, Bronze Fitted, or All Bronze configurations. Two drain plugs, located on the shaft housing, are provided with every pump.
Specifications of the Tri-Rotor Variable Volume Control Head Pump Model 220TV:
- Flow rate: 58 to 240 GPM
- Viscosity range: 410 to 1,000,000 cPs (2,000 to 5,000,000 SSU)
- Inlet and Discharge Port size: 4” Flanged Ports
- Operating temperature range: -40 °F to 650 °F
- Maximum operating pressure: 100 PSI
- Pump displacement per revolution: 0.465 gal/rev
- Pump speed range: 125 to 520 RPM
- Solids passage available: 0.069 in.
Configure Your 220TV Variable Volume Control Head Pump
Part Number:
220TV
Quantity:
Technical Information
Accessories
Please add a quantity to the following accessories before clicking the "Add to Quote Cart" button above to add items to your quote.
As with all Tri-Rotor pump models, the 220TV is available with a Steam Jacketed option for fluids requiring to be heated or cooled in order to be pumped.
Other Options for the Variable Volume Control Head Pump Model 220TV:
- Other Materials of Construction options:
- Shaft: Steel (std.), Stainless Steel, or Hardened Stainless Steel
- Piston: Iron (std.), Bronze, or Steel
- Body and Variable Control Head Gasket options:
- Standard {to 250 °F (121 °C)}
- Heat Resistant {to 650 °F (345 °C)}
- Shaft length: “M” (21”) (std.), “T” (21”), “MO” (21”), or “BD” (21”)
- Shaft seal and lubrication:
- Packing options (grease fitting provided):
- Teflon Impregnated Packing (std.) {to 550 °F (288 °C)}
- FDA Food Grade (PTFE) Packing {to 500 °F (260 °C)}
- Heat Packing {to 650 °F (345 °C)}
- Zero-Leak #3 (Beaded) Packing {-40 °F to 500 °F (-40 °C to 260 °C)}
- Zero-Leak #30 (Non-Beaded) Packing {-40 °F to 500 °F (-40 °C to 260 °C)}
- Mechanical seal options (oil cup provided):
- Type 1 Mechanical Seal – Viton {-40 °F to 300 °F (-40 °C to 150 °C)}
- Type 1 Mechanical Seal – Buna {10 °F to 180 °F (-10 °C to 80 °C)}
- Packing options (grease fitting provided):
- Variable Control Head Spring options:
- Standard {to 100 PSI}
- Shuttle design: Formed shuttle only
- Relieved Rotor Group (for higher viscosities: >10,000 SSU/2,150 cPs)
- Sanitary Preparation of pump internal components for food applications
- Grease feeder available for shaft lubrication on pumps with packing
- Exterior Protection: Orange Paint (std.), Black Paint, White Lacquer, or 316SS Epoxy Coating
The bare weight of the pump is approximately 330 lbs. The estimated shipping weight is 400 lbs.
Besides offering just a bare pump only for the Model 220TV, Tri-Rotor offers a complete mounted pump system, including motor drive assembly and mounting. Replacement parts for all Series 220 pumps can be found here.
