80 GPM Variable Volume Control Pump – Tri-Rotor Model 80BV

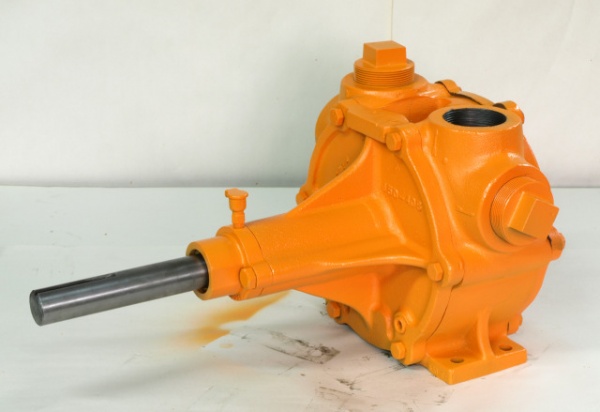

Click image to enlarge
Tri-Rotor Pump model 80BV, which shares common components with model 100CV and model 120AV, is in the second to the largest family of Tri-Rotor Variable Volume Control Head pumps that provide variable flow rates. This pump, with its unique design, allows the end user to adjust the flow rate of the pump from 0% to 100% through either the Manual Flow Control (MFC) or the more precise metering Vernier Flow Control (VFC) without changing motor speed. The pump serves a wide range of industrial markets and applications. Examples of the 80BV model’s diverse applications include pumping heat transfer oil, machine coolant, bitumen, lacquer, vacuum pump oil, sodium silicate, and propylene glycol.
The pump, available in both clockwise (CW) and counterclockwise (CCW) rotations, is designed with two threaded suction ports (side and top) and two threaded discharge ports (side and top) for the ultimate in installation flexibility. Standard configuration is side suction and top discharge. The other two ports are plugged with easily-moved pipe plugs. One of these unique pumps could even be installed to deliver two different compatible fluids to two different locations. Materials of construction for the 80BV model include Iron Fitted, All Iron, Bronze Fitted, or All Bronze configurations. Two drain plugs, located on the shaft housing, are provided with every pump.
The pump, available in both clockwise (CW) and counterclockwise (CCW) rotations, is designed with two threaded suction ports (side and top) and two threaded discharge ports (side and top) for the ultimate in installation flexibility. Standard configuration is side suction and top discharge. The other two ports are plugged with easily-moved pipe plugs. One of these unique pumps could even be installed to deliver two different compatible fluids to two different locations. Materials of construction for the 80BV model include Iron Fitted, All Iron, Bronze Fitted, or All Bronze configurations. Two drain plugs, located on the shaft housing, are provided with every pump.
Specifications of the Tri-Rotor Variable Volume Control Head Pump Model 80BV:
- Flow rate: 15 to 88 GPM
- Viscosity range: 4 to 21,625 cPs (40 to 100,000 SSU)
- Inlet and Discharge Port size: 2” NPT Ports
- Operating temperature range: -40 °F to 650 °F
- Maximum operating pressure: 100 PSI
- Pump displacement per revolution: 0.148 gal/rev
- Pump speed range: 100 to 600 RPM
- Solids passage available: 0.037 in.
Configure Your 80BV Variable Volume Control Head Pump
Part Number:
80BV
Quantity:
Technical Information
Accessories
Please add a quantity to the following accessories before clicking the "Add to Quote Cart" button above to add items to your quote.
As with all Tri-Rotor pump models, the 80BV is available with a Steam Jacketed option for fluids requiring to be heated or cooled in order to be pumped.
Other Options for the Variable Volume Control Head Pump Model 80BV:
- Other Materials of Construction options:
- Shaft: Steel (std.), Stainless Steel, or Hardened Stainless Steel
- Piston: Iron (std.), Bronze, or Steel
- Body and Variable Control Head Gasket options:
- Standard {to 250 °F (121 °C)}
- Heat Resistant {to 650 °F (345 °C)}
- Shaft length: “M” (15-1/4”) (std.), “T” (12-3/4”), “MO” (15-1/4”), or “BD” (15-1/4”)
- Shaft seal and lubrication:
- Packing options (grease fitting provided):
- Teflon Impregnated Packing (std.) {to 550 °F (288 °C)}
- FDA Food Grade (PTFE) Packing {to 500 °F (260 °C)}
- Heat Packing {to 650 °F (345 °C)}
- Zero-Leak #3 (Beaded) Packing {-40 °F to 500 °F (-40 °C to 260 °C)}
- Zero-Leak #30 (Non-Beaded) Packing {-40 °F to 500 °F (-40 °C to 260 °C)}
- Mechanical seal options (oil cup provided):
- Type 1 Mechanical Seal – Viton {-40 °F to 300 °F (-40 °C to 150 °C)}
- Type 1 Mechanical Seal – Buna {10 °F to 180 °F (-10 °C to 80 °C)}
- Packing options (grease fitting provided):
- Variable Control Head Spring options:
- Standard {to 50 PSI}
- Heavy Duty {to 100 PSI}
- Shuttle design: Block (std.) or Formed
- Relieved Rotor Group (for higher viscosities: >10,000 SSU/2,150 cPs)
- Sanitary Preparation of pump internal components for food applications
- Grease feeder available for shaft lubrication on pumps with packing
- Exterior Protection: Orange Paint (std.), Black Paint, White Lacquer, or 316SS Epoxy Coating
The bare weight of the pump is approximately 122 lbs. The estimated shipping weight is 155 lbs.
Besides offering just a bare pump only for the Model 80BV, Tri-Rotor offers a complete mounted pump system, including motor drive assembly and mounting. Replacement parts for all Series 80 pumps can be found here.
